Do you know the network path of your data?

Check out CLEVER eRoute!

CLEVER eRoute
Current Release
Downloadable Material
Technical Details

Your networks are the very foundation of your critical business services, and are of paramount importance to revenue generation. With a multiplicity of interconnected routers and mid-tier services, the intricacies of such issues as route discovery, route congestion, re-routing, and broadcasting challenge the effective management of your enterprise.

CLEVER eRoute expedites enterprise-wide IP route performance management and Service Level control, providing a systemic approach to the organization and analysis of route and segment data.

Scheduling and collection of enterprise-wide performance data
Analysis of route performance for the entire network
Auto-discovery of routes and patterns, and detailed analysis of all end-points, routes, segment hops, time ranges, and response criteria to establish performance baselines
IP routing diagnostics for analysis of defective routes
Analyses of usage patterns, congestion, and defects for capacity planning
Management Reports including route and segment hop summaries, response times, and defects
Diagnostic information from SNMP public and private MIBs

CLEVER eRoute Architecture

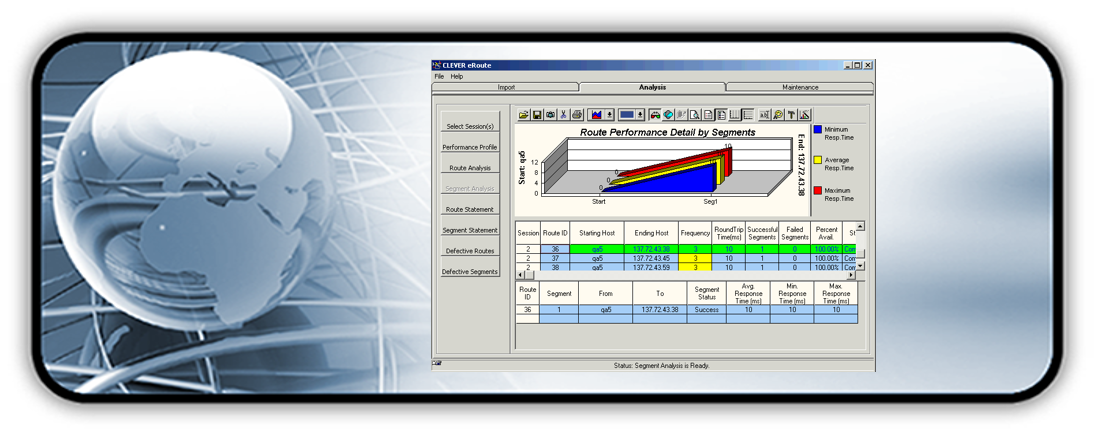

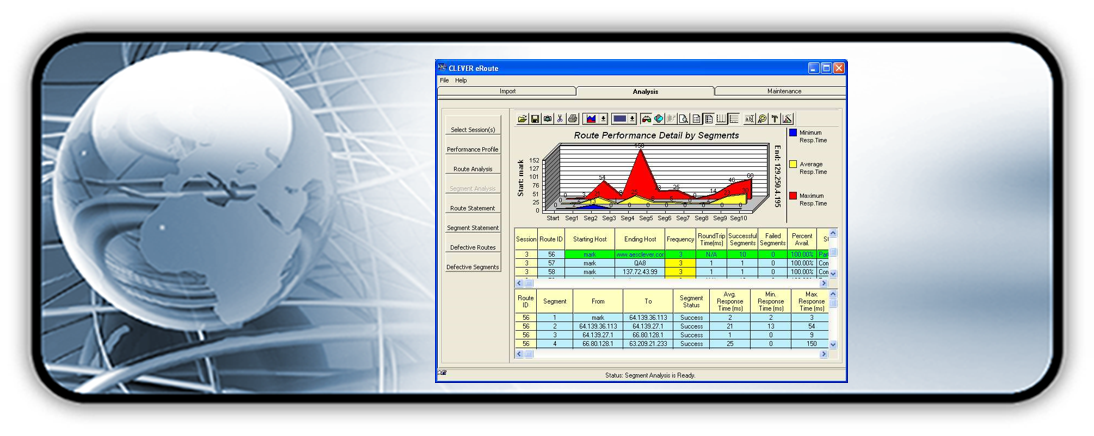

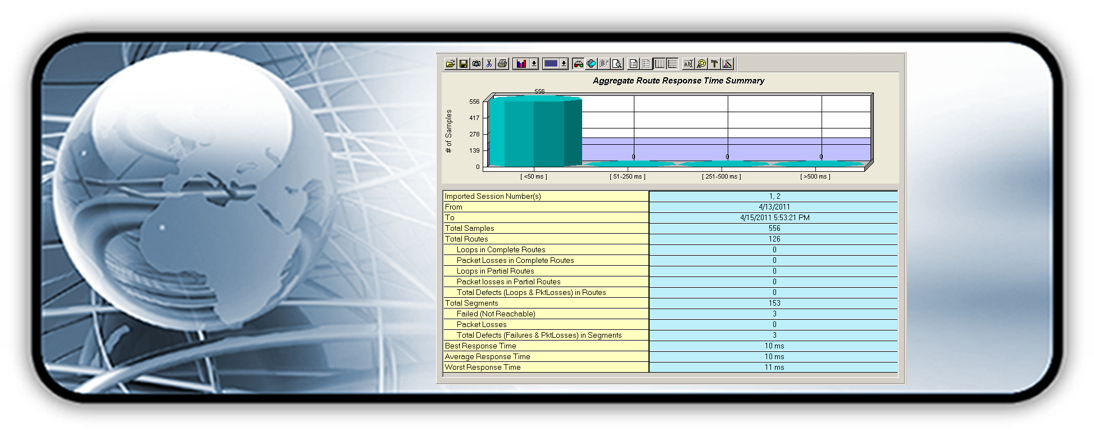

CLEVER eRoute provides route performance analysis for the TCP/IP transaction environment in three categories: Failure, Performance (response time), and Patterns (of network usage). The analysis is performed by session. Information is represented graphically through charts and is also available in a tabular report format.

CLEVER eRoute obtains its data from the eRoute Host Collector, the eCollector (local to the Master), and the remote eCollector Agents. Each eCollector Agent performs a TraceRoute command from the remote starting point to a set of network nodes (any IP-addressable device). The TraceRoute command transmits packets to each node along the path that constitutes the route, and outputs a millisecond response time for each packet. Each response time associated with each network node is collected and saved in an ouput file that provides raw data for CLEVER eRoute to analyze. The output file provides information on route performance, number of segments (the path between two network nodes, also called hops), and each host detected along the route. From this information CLEVER eRoute analyzes the data, systematically organizing and presenting it to the user in an accessible and easily understood format.

CLEVER eRoute can also obtain data from the Windows® CLEVER TCP/IP Operations Manager.

CLEVER eRoute System Requirements

PC Workstation (CLEVER eRoute Server Software and eCollector Agent for Windows): Pentium® PC or compatible, 500MHz or above w/128MB RAM and 200Mb available disk space; Microsoft® Windows 98, ME, 2000, NT V.4.0 w/ SP6, or XP

PC Workstation (eCollector Agent for Linux): Pentium PC or compatible, 500MHz or above w/128MB RAM and 200MB available disk space; Red Hat® Linux 7.3 or above

CLEVER eRoute (optional) Host Collector Mainframe Requirements: IBM s/390 architecture, 175 3390-type device tracks for product libraries, and either z/OS V1R1 or later, or OS/390 V2R10 or later
